SciEGQA targets a practical but under-explored setting: answering questions on scientific papers while explicitly grounding each answer in the visual evidence regions that support it. Each sample pairs the query and answer with evidence pages, semantic-region bounding boxes, document metadata, and multiple converted views for answer generation and grounding evaluation.
1,623
Benchmark #QA
30,780
Training Set #QA
8
arXiv categories
3
Question types

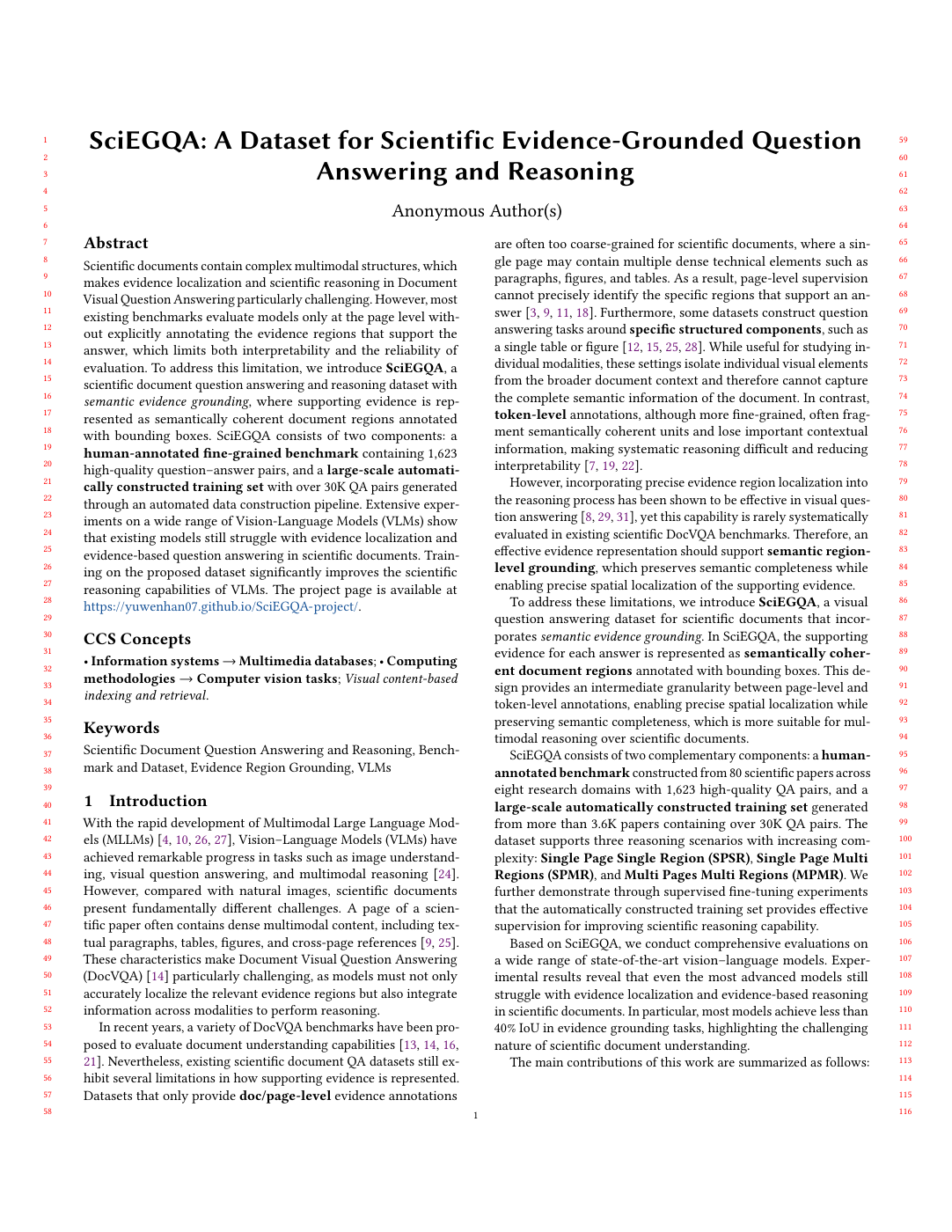

Paper Preview
Benchmark
80 papers
1,941 pages
Training Set
3,671 papers
42,380 pages
Annotation
12 annotators
24 domain experts
Evidence
Evidence doc and page(s)
Evidence region(s)
Overview

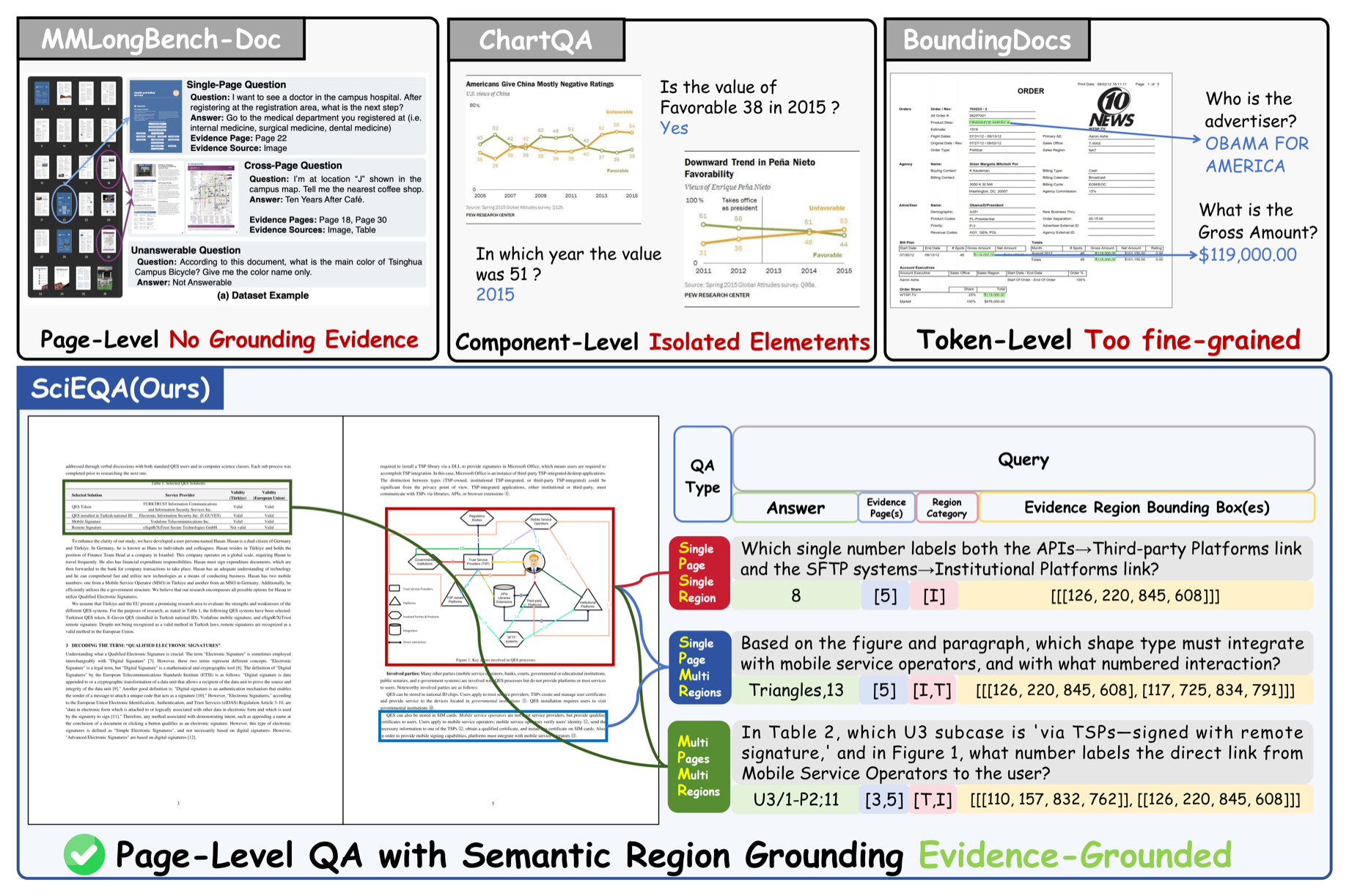

Existing document QA datasets usually fall into three buckets: page-level QA without precise grounding, component-focused QA on isolated charts or tables, or token-level supervision that is precise but often too fragmented to preserve semantic completeness. SciEGQA is designed to close that gap.
The dataset keeps the question answering setup close to realistic scientific document understanding while attaching semantic evidence regions as bounding boxes. This makes it possible to evaluate both whether a model answers correctly and whether it actually found the right visual support.
SciEGQA is positioned between coarse page-level QA and overly fragmented token-level grounding by annotating semantically complete evidence regions.
At A Glance
A fine-grained benchmark built from 80 arXiv papers with manual semantic-region annotations for rigorous evaluation of scientific document understanding and evidence grounding.
A large-scale training resource constructed through a PDF-to-region-to-QA pipeline, designed for scalable model training and extensible dataset generation.
Overview of the raw data formats.
{
"query": "...",
"answer": "...",
"evidence_page": [x],
"bbox": [[[x1, y1, x2, y2]]],
"rel_bbox": [[[rel_x1, rel_y1, rel_x2, rel_y2]]],
"subimg_type": [["category"]],
"doc_name": "xxxxxx",
"category": "xxx"

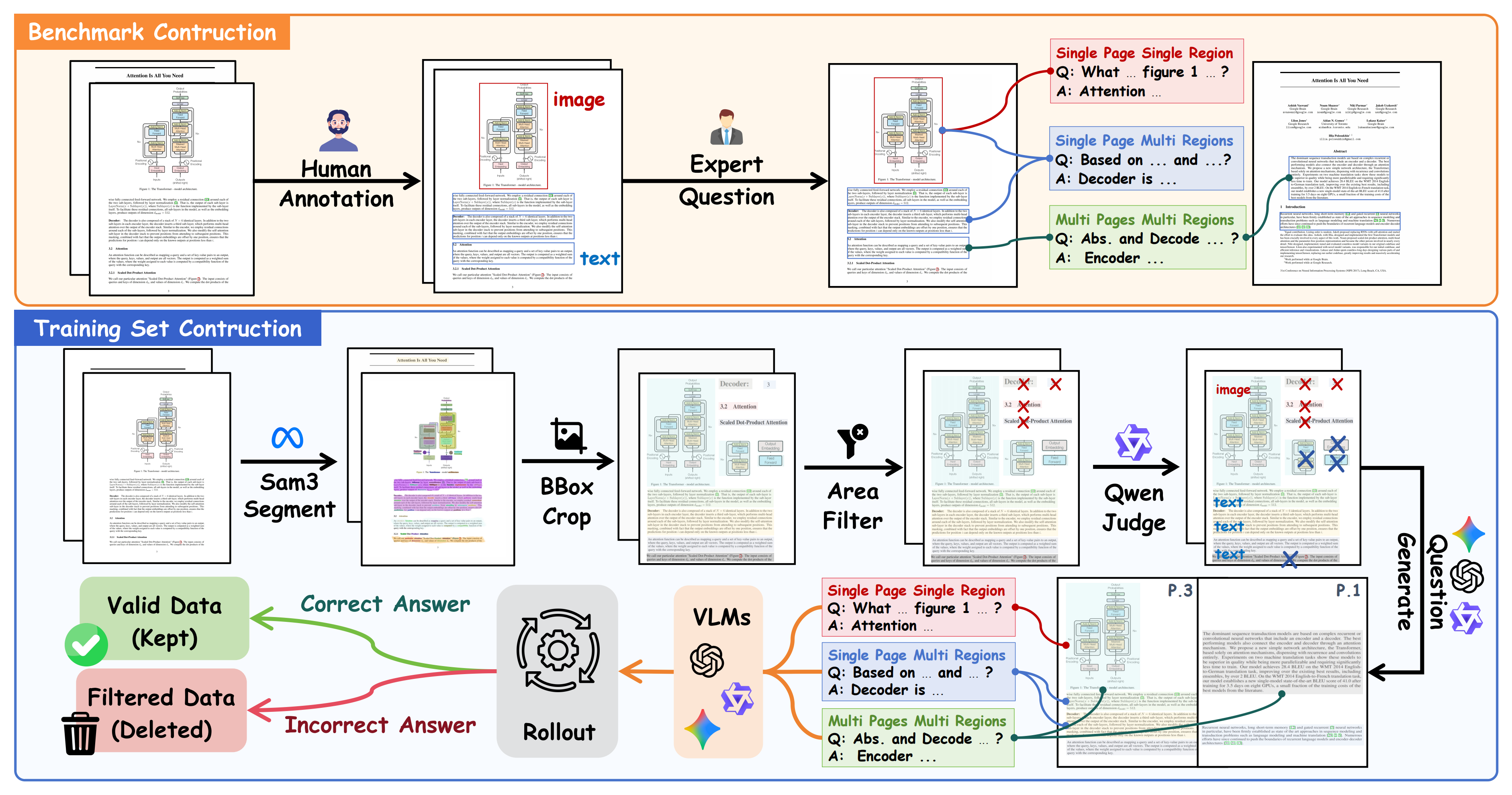

}Construction
The SciEGQA dataset consists of a fine-grained benchmark and a large-scale automatically constructed training set.
Examples
Single Page Single Region
Localized reasoning from one semantic evidence region on one page.

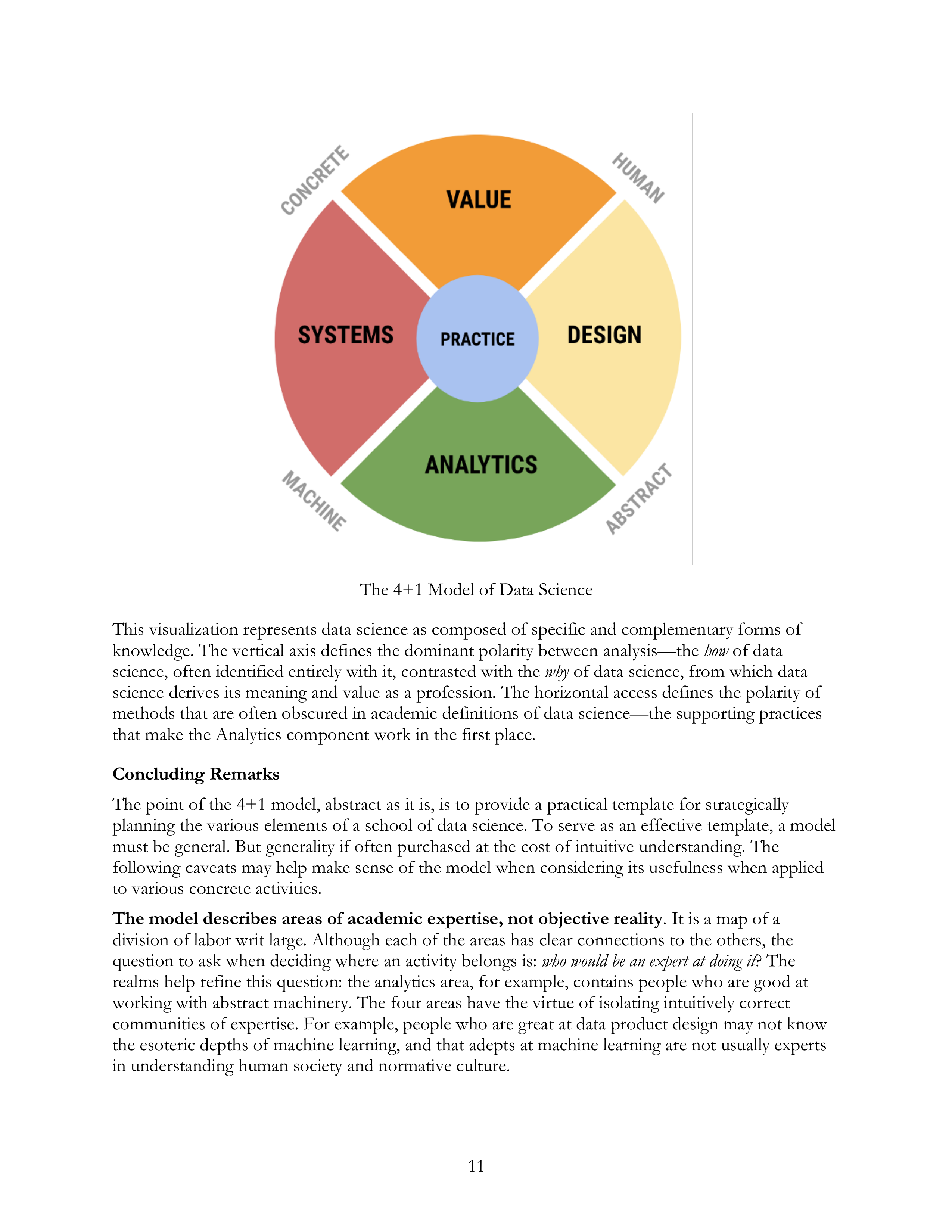

Single Page Multi Regions
Reasoning across multiple semantically related regions within the same page.
Multi Pages Multi Regions
Cross-page evidence integration over multiple regions, the highest complexity.

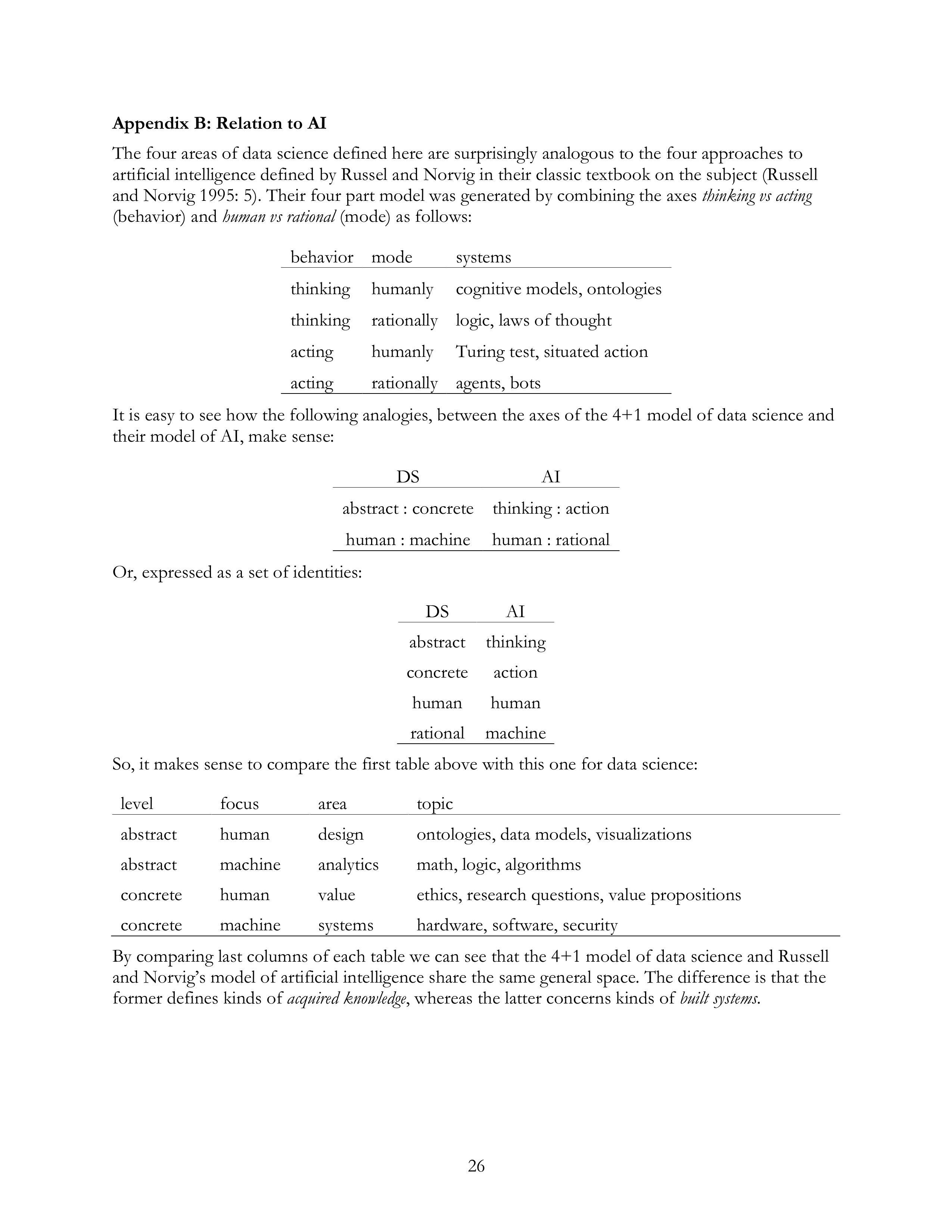

In the identities table, what AI entry corresponds to the DS term "rational"?
Answer: machine
Using the axis descriptions and the wheel diagram, which segment labels mark the ends of the vertical "how vs why" axis and the horizontal "supporting practices" axis?
Answer: Vertical: Value and Analytics; Horizontal: Systems and Design.

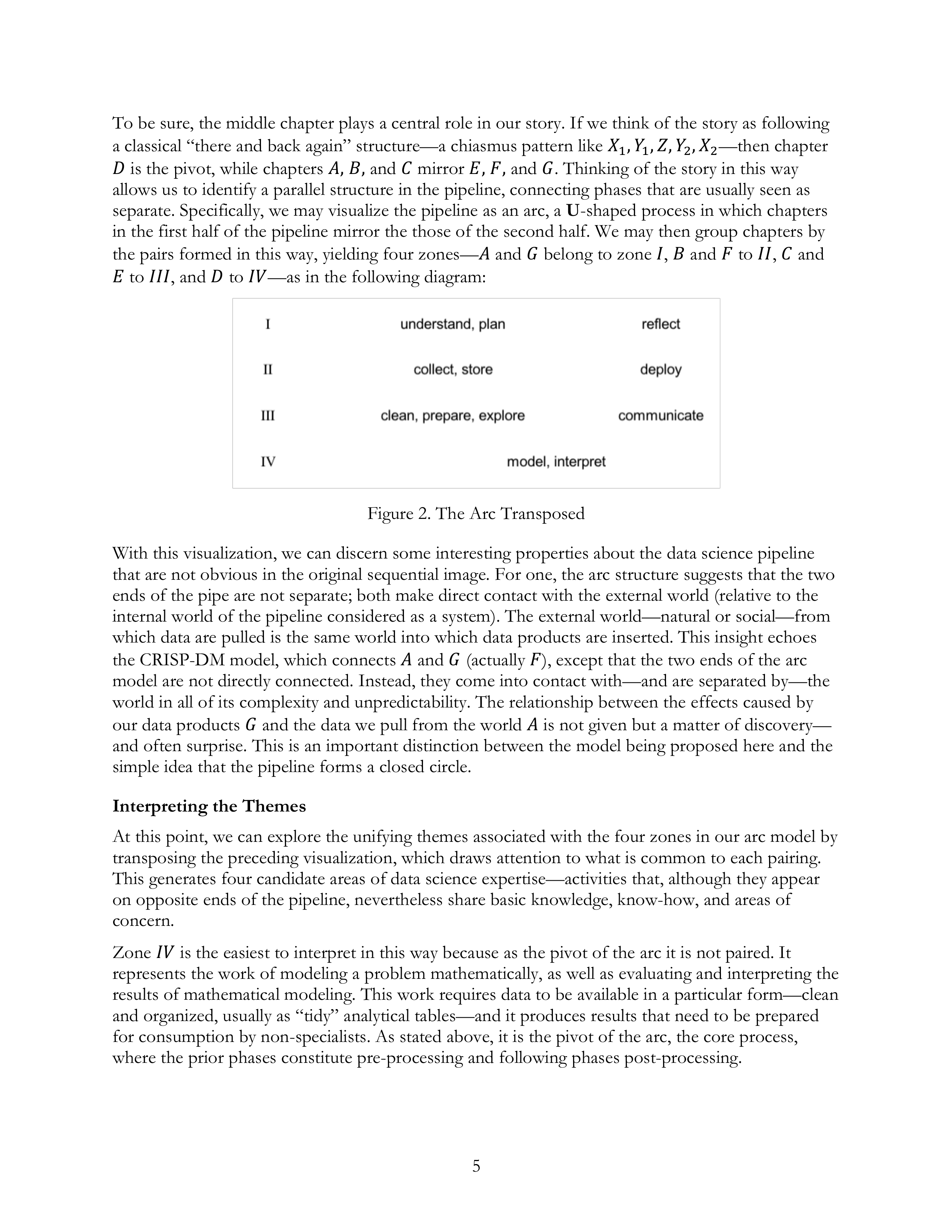

In Table 1, the Machine-Concrete quadrant shows which primed numeral, and in Figure 2 what three left-column actions correspond to that numeral?
Answer: III'; clean, prepare, explore
Statistics
Benchmark papers are evenly sampled with 10 papers per category. The training set scales unevenly across eight domains.
The paper reports dataset statistics over category-modality combinations, question and answer lengths, spatial evidence locations, and evidence type distributions for both benchmark and training data.
Task
We design two evaluation tasks on the SciEGQA benchmark and perform zero-shot inference to systematically evaluate a diverse set of Vision-Language Models (VLMs).
Given the evidence page(s) and the corresponding question, the model
predicts a set of bounding boxes that localize the regions relevant to
answering the question. Each box is represented as
(x1, y1, x2, y2), with coordinates normalized to the page coordinate space
of [0,1000].
Predict bounding boxes
Answer by crop predicted region(s)
Evaluation pipeline
We evaluate model performance under three levels of input granularity: the entire document, the evidence page(s), and the cropped evidence region(s). By comparing answer accuracy across these settings, we analyze how evidence granularity influences the question answering capability of VLMs.
Entire document
All pages of the source paper are provided to the model for direct answer generation.
Evidence page(s)
Only the page or pages that support the answer evidence are given as input.
Cropped evidence region(s)
The model receives only the cropped evidence region or regions annotated for the QA pair.
Main Results
The tables below summarize the main benchmark numbers. Task 1 evaluates both grounding quality and crop-then-answer performance, while Task 2 measures answer accuracy under different evidence granularities.
Task 1 · Mean IoU
Qwen3.5-397B-A17B
38.89%
Best average overlap with gold evidence regions.
Task 1 · IoU@0.3
Qwen3-VL-8B-SFT
57.92%
Highest proportion of predictions with IoU greater than 0.3.
Task 1 · Final accuracy
Qwen3.5-27B
51.26%
Best crop-then-answer accuracy in the grounding pipeline.
Task 2 · Whole document
Kimi-K2.5
68.02%
Best answer accuracy with full-paper input.
Task 2 · Evidence page(s)
GPT-5.2
81.39%
Best answer accuracy when only evidence pages are given.
Task 2 · Evidence crop(s)
GPT-5.2
85.15%
Best answer accuracy on cropped evidence regions.
Task 1
Metrics: valid grounding output, IoU, and final answer accuracy.
| Model | Valid output | Valid ratio | Mean IoU | IoU@0.3 | IoU@0.5 | IoU@0.7 | Acc |
|---|---|---|---|---|---|---|---|
| Qwen3-VL-8B | 1413 | 87.06% | 21.43% | 24.77% | 12.14% | 7.27% | 32.04% |
| Qwen3-VL-32B | 1593 | 98.15% | 31.53% | 44.55% | 18.55% | 11.95% | 46.46% |
| Qwen3-VL-235B-A22B | 1439 | 88.66% | 25.22% | 33.52% | 10.72% | 4.87% | 38.63% |
| Qwen3.5-27B | 1620 | 99.82% | 36.04% | 47.50% | 29.39% | 19.90% | 51.26% |
| Qwen3.5-122B-A10B | 1501 | 92.48% | 30.76% | 38.08% | 21.87% | 14.11% | 46.95% |
| Qwen3.5-397B-A17B | 1615 | 99.51% | 38.89% | 52.19% | 32.96% | 20.64% | 50.15% |
| InternVL3-38B | 1445 | 89.03% | 5.23% | 3.39% | 0.62% | 0.12% | 5.05% |
| Ernie-5 | 1378 | 84.90% | 14.57% | 19.10% | 9.55% | 4.00% | 22.12% |
| Kimi-K2.5 | 1563 | 96.30% | 7.17% | 7.16% | 5.49% | 2.23% | 7.46% |
| Claude Sonnet 4.6 | 1523 | 93.84% | 15.93% | 17.25% | 4.81% | 0.68% | 19.29% |
| GPT-5.2 | 1621 | 99.88% | 31.63% | 49.11% | 18.55% | 4.81% | 41.22% |
| Qwen3-VL-8B-SFT | 1619 | 99.75% | 38.66% | 57.92% | 28.77% | 17.25% | 49.97% |
Task 2
Metric: overall answer accuracy on benchmark QA pairs.
| Model | Whole document | Evidence page(s) | Evidence crop(s) |
|---|---|---|---|
| Qwen3-VL-8B | 9.30% | 60.51% | 65.87% |
| Qwen3-VL-32B | 16.14% | 73.14% | 75.54% |
| Qwen3-VL-235B-A22B | 40.30% | 70.49% | 75.42% |
| Qwen3.5-27B | 42.95% | 69.69% | 77.02% |
| Qwen3.5-122B-A10B | 37.58% | 68.95% | 73.01% |
| Qwen3.5-397B-A17B | 36.23% | 68.08% | 73.75% |
| InternVL3-38B | 10.23% | 48.18% | 64.14% |
| Ernie-5 | 38.51% | 77.39% | 81.89% |
| Kimi-K2.5 | 68.02% | 79.98% | 81.21% |
| Claude Sonnet 4.6 | 43.99% | 68.45% | 74.31% |
| GPT-5.2 | 65.43% | 81.39% | 85.15% |
| Qwen3-VL-8B-SFT | 32.87% | 69.43% | 76.89% |
Analysis Figures

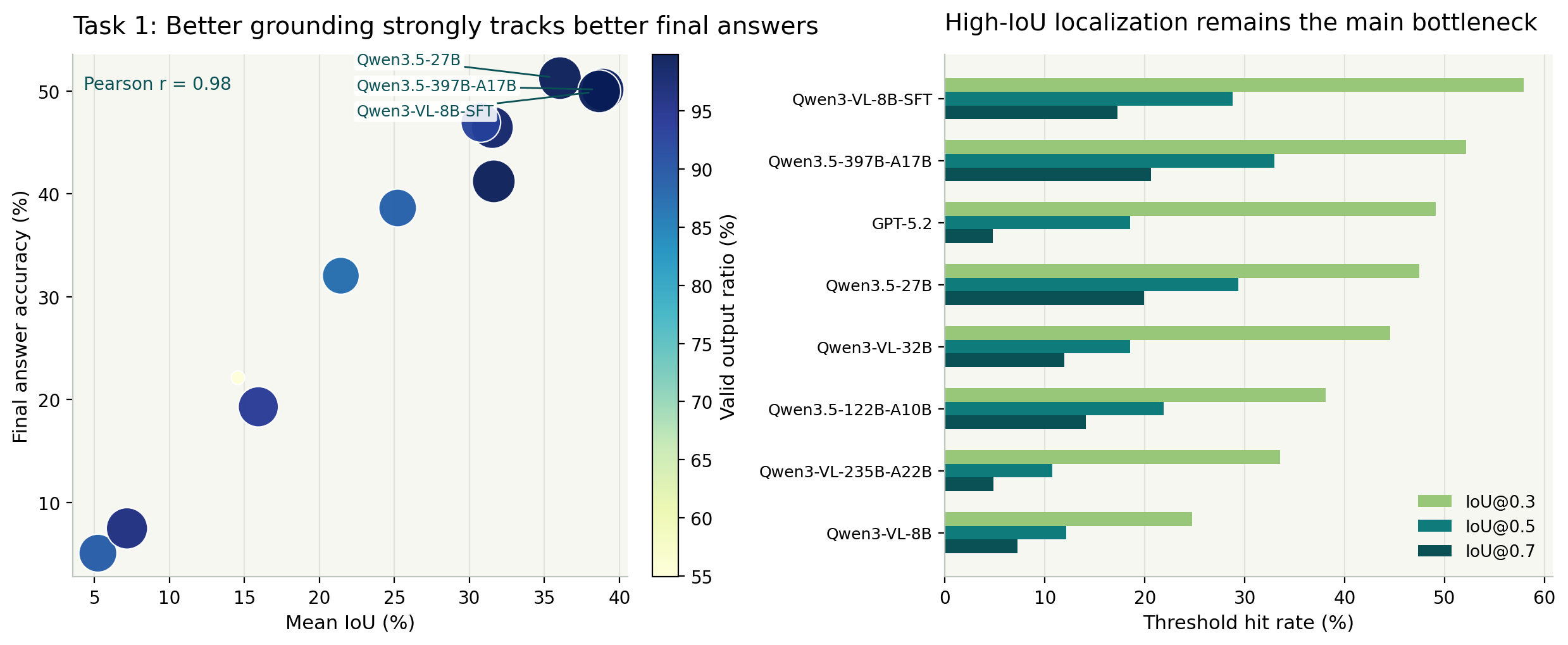

In Task 1, grounding quality and final answer accuracy are tightly coupled, since the predicted bounding boxes determine the visual content provided to the downstream QA model. When the localized regions deviate from the true evidence, the cropped inputs may contain incomplete or irrelevant information, which easily leads to incorrect answers. Meanwhile, achieving high-IoU localization remains substantially harder than coarse localization, suggesting that current models still struggle to precisely capture semantically complete evidence regions in complex scientific documents.

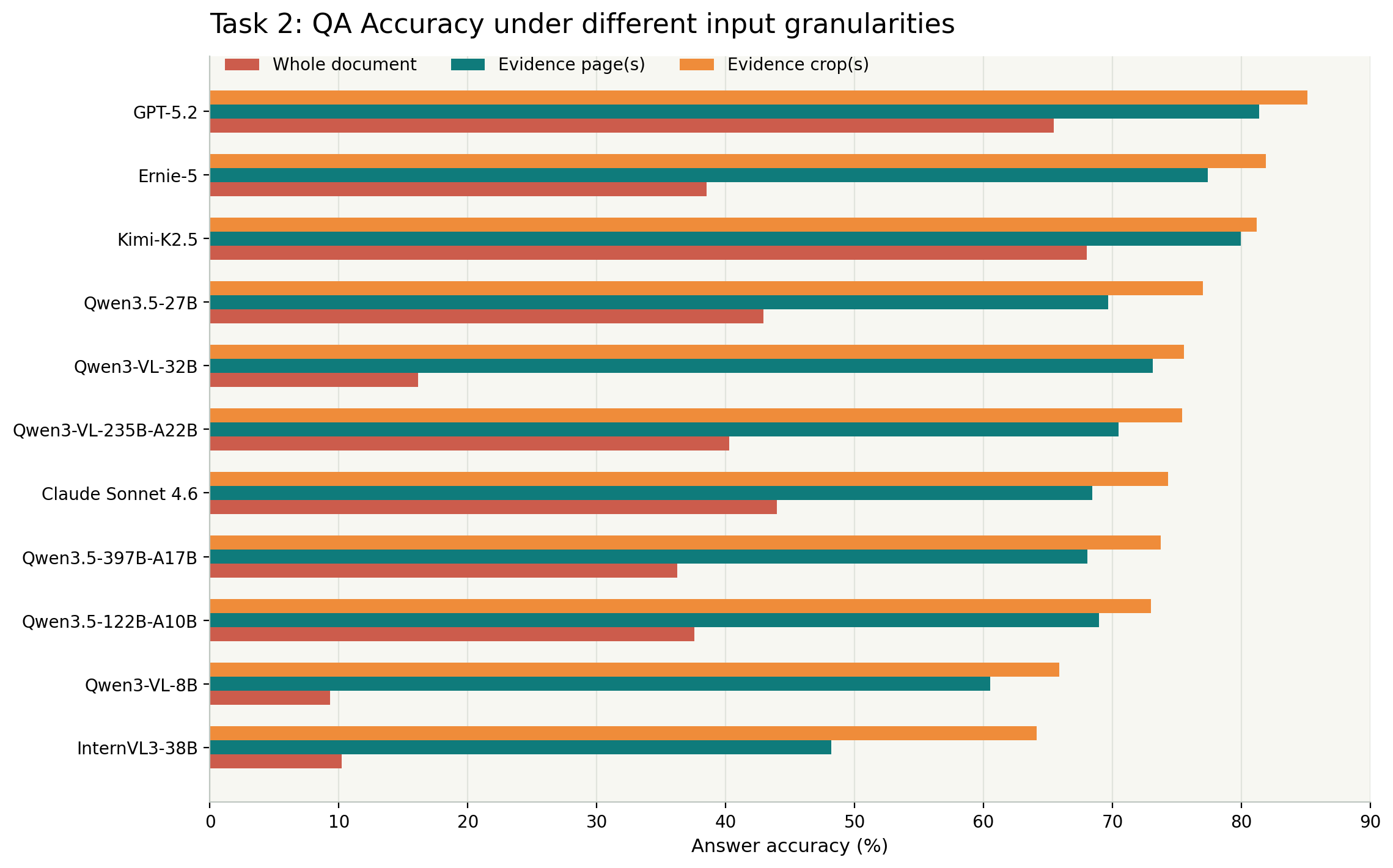

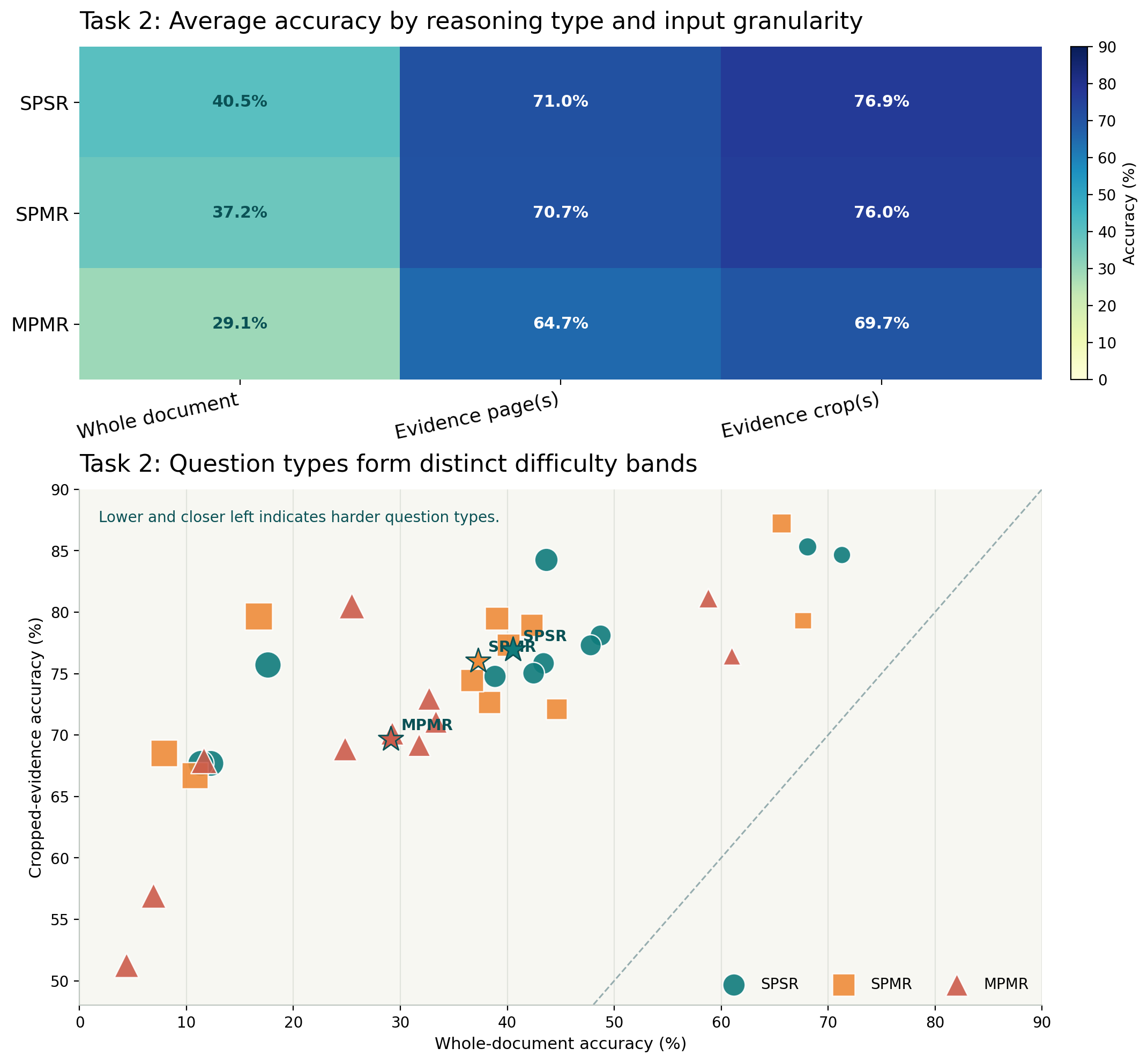

In Task 2, overall QA accuracy improves as evidence becomes more focused, from document-level to page-level and finally region-level inputs. This trend indicates that reducing irrelevant context helps models concentrate on the most informative regions for reasoning. Further analysis shows that SPSR, SPMR, and MPMR form distinct difficulty bands rather than behaving like a single homogeneous QA set, with performance gradually decreasing as reasoning complexity increases.
Paper
The paper frames SciEGQA as a missing middle ground in DocVQA: it preserves full-page scientific document reasoning while adding semantic-region evidence boxes that are complete enough to remain meaningful and precise enough to evaluate grounding. It also formalizes benchmark and training-set construction as two coordinated parts of one dataset ecosystem.
Question answering on scientific documents with explicit evidence pages and semantic-region bounding boxes.
1,623 benchmark QA pairs plus 30,780 automatically generated training QA pairs from 3,671 papers.
SPSR, SPMR, and MPMR tasks cover localized, multi-region, and cross-page evidence integration.
Answer correctness and grounding quality can be evaluated together, rather than treating them as separate tasks.
Resources
Code, scripts, metrics, data conversion, local/API generation, and training-set construction.
The benchmark release for evaluation on grounded QA over scientific papers.
The large-scale training resource derived from the automatic PDF-to-grounded-QA pipeline.
Read the latest SciEGQA preprint on arXiv, including the abstract, metadata, and downloadable PDF.
Citation
If you use SciEGQA in your research, please cite the arXiv paper below.
@misc{yu2026sciegqadatasetscientificevidencegrounded,
title={SciEGQA: A Dataset for Scientific Evidence-Grounded Question Answering and Reasoning},
author={Wenhan Yu and Zhaoxi Zhang and Wang Chen and Guanqiang Qi and Weikang Li and Lei Sha and Deguo Xia and Jizhou Huang},
year={2026},
eprint={2511.15090},
archivePrefix={arXiv},
primaryClass={cs.DB},
url={https://arxiv.org/abs/2511.15090},
}
